Fluoroscopy
The standard screens for fluoroscopy is the green-emitting CAWO LS 16. The screen is made from a rare earth type phosphor. Its extreme brilliance allows a minimum radiation dose to the patient as well as showing good detail perceptibility.
Technical Specifications:
| Phosphor | Gd2O2S: Tb |
| Thickness (screen) | 370 μm |
|
Thickness (phosphor layer) |
190 μm |

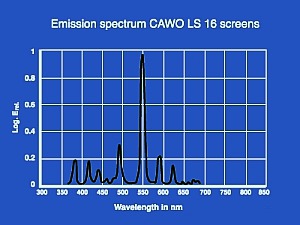

| Light emission ( λ max.) | 545 nm |
| After glow (50%) | 2 μs (approx.) |
Most common sizes:
| Sizes | Order codes |
| 9 x 12 cm | 223JX |
|
13 x 18 cm |
G5CZW |
| 24 x 30 cm | G4L96 |
| 25 x 45 cm | 33C3S |
| 30 x 30 cm | G5CUM |
| 30 x 40 cm | G4CSH |
| 35 x 35 cm | 39SKY |
| 35 x 43 cm | G4MBD |
| 40 x 40 cm | G5BGP |
| 43 x 43 cm | G5AOZ |
Fluoroscopy screens are also available in all the other sizes required for commercial apparatus.
